Benefits
- Pre and after-sales service.
- 12 years warranty on material and workmanship.
- Marketing support to official distributors.
- Customized mounting solutions.
Applications
 |
ON-GRID RESIDENTIAL ROOF-TOPS |
 |
ON-GRID COMMERCIAL / INDUSTRIAL ROOF-TOPS |
 |
SOLAR POWER PLANTS |
 |
OFF-GRID SYSTEMS (INCLUDING LIGHTING SYSTEMS) |
Electrical Characteristics
| POWER AT STC |
400 W |
405 W |
410 W |
| Short Circuit Current - Isc (A) |
13.68 |
13.72 |
13.76 |
| Maximum Power Current - Impp (A) |
12.94 |
13.00 |
13.06 |
| Open Circuit Voltage - Voc (V) |
37.00 |
37.29 |
37.60 |
| Maximum Power Voltage - Vmpp (V) |
30.92 |
31.16 |
31.40 |
| Module Efficiency - η’ (%) |
20.5% |
20.8% |
21.0% |
Material Characteristics
| Cells per Module |
108 (54 x 2) |
| Cell Type |
Grade A - Mono PERC Crystalline Silicon/10 BB 182x91mm |
| Front Surface |
3.2mm Tempered AR Coated Glass |
| Encapsulant |
PID Free EVA |
| Back Cover |
Backsheet |
| Frame |
Anodized Aluminum (Black) |
| Junction Box |
IP68 , 3 Bypass Diodes |
| Cable Length |
300mm Cables Length (Can be Customized) |
| Fire Classification |
Type I |
Thermal Characteristics
| Characteristics |
Value |
Open Voltage Temperature
Coefficient VOC (%/C° |
-0.26 |
Short Circut Current Temperature
Coefficient ISC (%/C°) |
0.04 |
Power Temperature
Coefficient PMP (%/C°) |
-0.3 |
| NOCT (°C) |
45±2 |
Physical Characteristics
| Characteristics |
Value |
| Module Dimensions (mm |
1721±1 x 1133±1 x 30 |
| Module Weight (kg) |
20.5 ± 1kg |
|
|
| Packaging |
Value |
| Modules per Pallet |
37 |
| 40 Feet High-Cube Container |
962 Modules |
|
|
| Mechanical Load** |
Value |
| Max Static load (Front) |
5400 Pa |
| Max Static load (Back) |
5400 Pa |
| Dynamic load |
1000 Pa |
Operating Conditions
| Maximum System Voltage - Vmax (V) |
1500 |
| Maximum Series Fuse (A) |
25 |
| Operating Temperature Range (°C) |
IEC: -40 to +85
UL: -40 to +90 |
Certifications
IEC 62782:2016 Dynamic load
IEC TS 62804 PID Resistance
IEC 60068 Dust and Sand Resistance
IEC 62716 Ammonia Resistance
IEC 61701 Salt Mist Resistance UL 61215 / UL 61730 IEC 61215 / IEC 61730 EN ISO 9001: 2015 Quality Management System
EN ISO 14001: 2015 Environmental Management System
EN ISO 45001: 2018 Occupational Health and safety management systems
Features

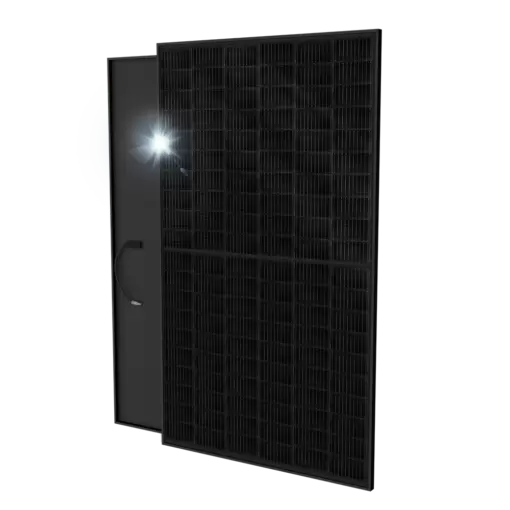

PS-M108-(HC)-xxxW is a Mono-Crystalline Full-Black (M10) module with power up to 410 Wp produced using state-of-the-art (automated) robotic production lines.
These modules are suitable to be used for most electrical power applications and have excellent durability in prevailing weather conditions.
 |
LOWER INTERNAL RESISTANCE LOSS |
 |
LESS PARTIAL SHADING CURRENT MISMATCH LOSS SO MORE POWER OUTPUT |
 |
LOWER MICROCRACK PROBLEM LOSS COMPARED WITH 5-BUSBAR MODULE |
 |
LOWER DEGRADATION PERC TECHNOLOGY |
 |
BETTER TEMPERATURE COEFFICIENTS COME FROM HALF-CELL DESIGN |
 |
PID RESISTANT |
