Benefits
- Pre and after-sales service.
- 12 years warranty on material and workmanship.
- Marketing support to official distributors.
- Customized mounting solutions.
Applications
 |
ON-GRID RESIDENTIAL ROOF-TOPS |
|---|---|
 |
ON-GRID COMMERCIAL / INDUSTRIAL ROOF-TOPS |
 |
SOLAR POWER PLANTS |
 |
OFF-GRID SYSTEMS (INCLUDING LIGHTING SYSTEMS) |
Electrical Characteristics
| POWER AT STC | 400 W | 405 W | 410 W |
| Short Circuit Current - Isc (A) | 13.55 | 13.59 | 13.66 |
| Maximum Power Current - Impp (A) | 12.92 | 12.96 | 13.01 |
| Open Circuit Voltage - Voc (V) | 37.15 | 37.34 | 37.55 |
| Maximum Power Voltage - Vmpp (V) | 31 | 31.27 | 31.52 |
| Module Efficiency - η’ (%) | 20.50% | 31.27 | 21.00% |
| Bifaciality Ratio (%) 65±5% | 65±5% | 65±5% | 65±5% |
Material Characteristics
| Characteristics | Value |
| Cells per Module | 108 (54x 2) |
| Cell Type | Grade A - Mono PERC Crystalline Silicon/10 BB 182x91mm |
| Front Surface | 3.2mm Tempered AR Coated Glass |
| Encapsulant | PID Free EVA |
| Back Cover | Transparent Backsheet |
| Frame | Anodized Aluminum (Black) |
| Junction Box | IP68, 3 Bypass Diodes |
| Cable Length | Cables Length Could be 300mm, or 1200mm With Original MC4 Connector |
| Fire Classification | Type I |
Thermal Characteristics
| Characteristics | Value |
| Open Voltage Temperature Coefficient VOC (%/C°) | -0.22 |
| Short Circut Current Temperature Coefficient ISC (%/C°) | +0.05 |
| Power Temperature Coefficient PMP (%/C°) | -0.35 |
| NOCT (°C) | 45±2 |
Physical Characteristics
| Characteristics | Value |
| Module Dimensions (mm) | 1721±1 x 1133±1 x 30 |
| Module Weight (kg) | 20.5 ± 1kg |
| Packaging | Value |
| Modules per Pallet | 37 |
| 40 Feet High-Cube Container | 962 Modules |
| Mechanical Load** | Value |
| Max Static load (Front) | 5400 Pa |
| Max Static load (Back) | 5400 Pa |
| Dynamic load | 1000 Pa |
Operating Conditions
| Maximum System Voltage - Vmax (V) | 1500 |
| Maximum Series Fuse (A) | 25 |
| Operating Temperature Range (°C) | IEC: -40 to +85 UL: -40 to +90 |
Certifications
IEC 62782:2016 Dynamic load
IEC TS 62804 PID Resistance
IEC 60068 Dust and Sand Resistance
IEC 62716 Ammonia Resistance
IEC 61701 Salt Mist Resistance UL 61215 / UL 61730 IEC 61215 / IEC 61730 EN
ISO 9001: 2015 Quality Management System EN
ISO 14001: 2015 Environmental Management System EN
ISO 45001: 2018 Occupational Health and safety management systems
Features

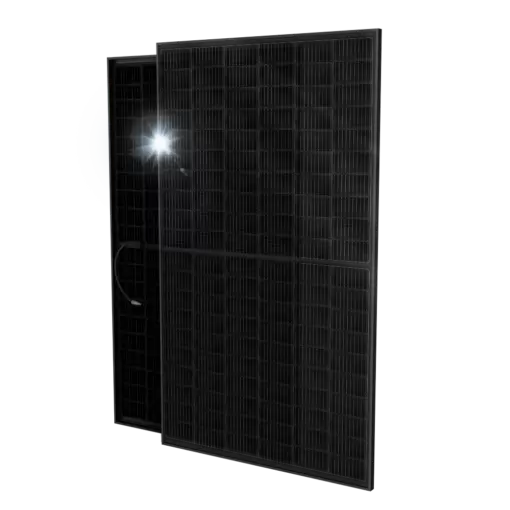

PS-M108-(HCBF)-xxxW Mono-Crystalline Bifacial Full-Black modules with power up to 410 Wp are produced using state-of-the-art (automated) robotic production lines.
These modules are suitable to be used for most electrical power applications and have excellent durability in prevailing weather conditions.
 |
EXTENDABLE PRODUCT WARRANTY TO 25 YEARS |
|---|---|
 |
5400PA/5400PA STATIC MECHANICAL LOAD CAPACITY. |
 |
LOWER MICROCRACK PROBLEM LOSS COMPARED WITH 5-BUSBAR MODULE. |
 |
LOWER DEGRADATION PERC TECHNOLOGY. |
 |
BETTER TEMPERATURE COEFFICIENTS COME FROM HALF-CELL DESIGN. |
 |
EXCELLENT ANTI-PID PERFORMANCE TO ENSURE MODULE’S STABLE POWER OUTPUT. |
 |
LESS PARTIAL SHADING CURRENT MISMATCH LOSS SO MORE POWER OUTPUT |
